Description

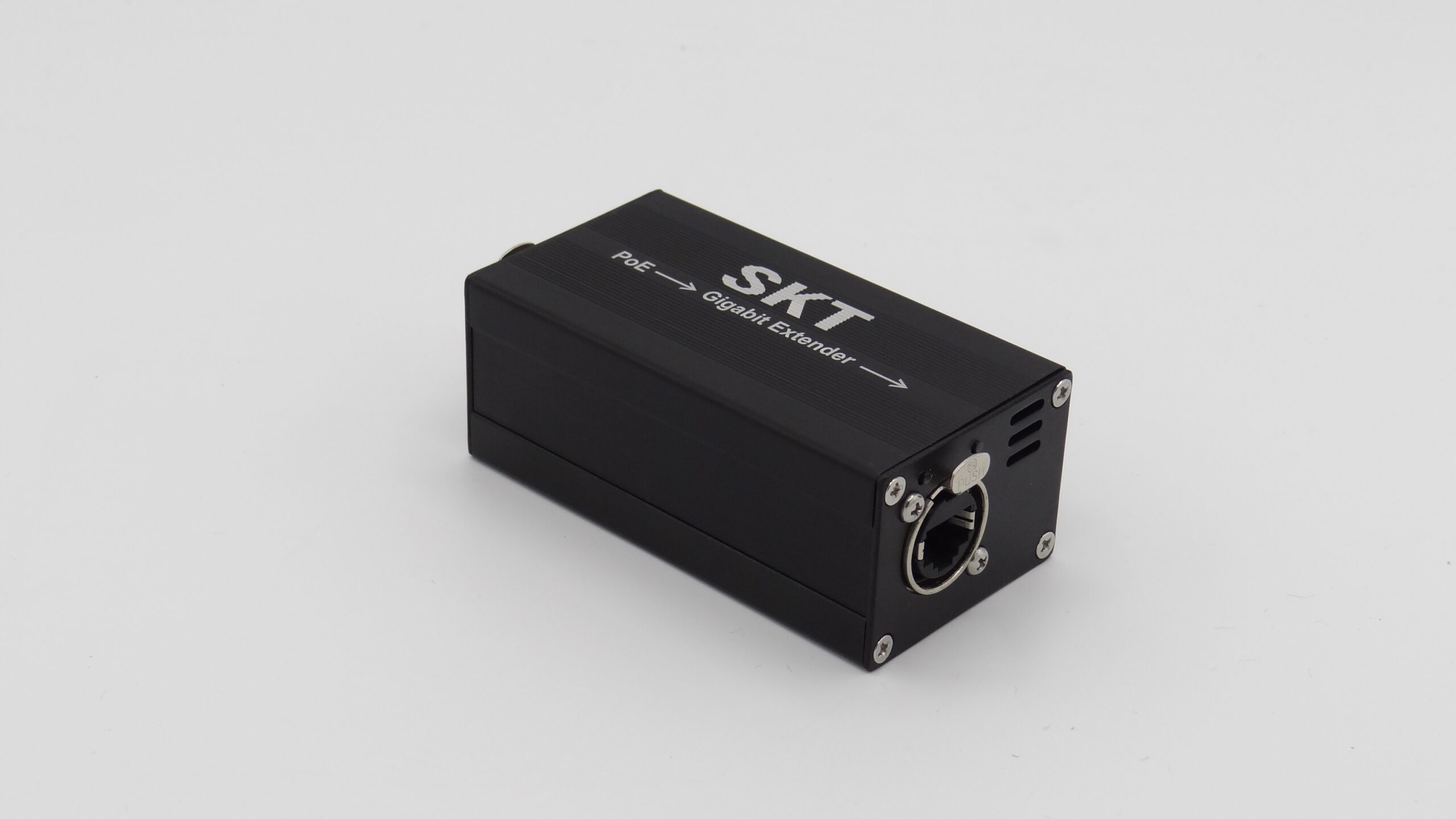

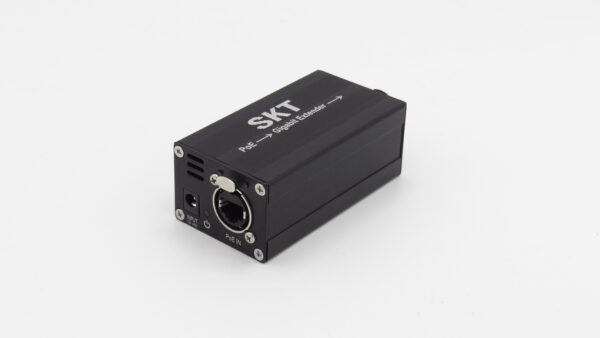

The SKT Network Extender is an active smart unmanaged high-performance 2-port 10/100/1000M Ethernet switch with an integrated Power over Ethernet functionality using a low-power chip that supports 1000Base-T, 100Base-TX, and 10Base-T.
It can be powered via Power over Ethernet (PoE) and extends your 1000BASE-T Gigabit network another 330ft (100m).
- Port #1 supports Power over Ethernet (PoE) IN IEEE 802.3af
- Each port supports full duplex 10/100/1000M connectivity (half duplex only supported in 10/100M mode)
- Full-duplex and half-duplex operation with IEEE 802.3x flow control and backpressure
- Supports 9216-byte jumbo packet length forwarding at wire speed
- Spanning Tree port behavior configuration
- IEEE 802.1w Rapid Spanning Tree
- IEEE 802.1s Multiple Spanning Tree with up to 16 Spanning Tree instances
- H/W IGMP/MLD Snooping
- IGMPv1/v2/v3 and MLD v1/v2
- Supports ‘Fast Leave’
- Quality of Service (QoS)
- Supports per-port Input Bandwidth Control
- Traffic classification based on IEEE 802.1p/Q priority definition, physical Port, IP DSCP field, ACL definition, VLAN based priority, MAC based priority, and SVLAN based priority
- Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
- Green Ethernet features disabled to accomodate industry-standard protocols such as Art-Net and sACN
