Two isolated 5-port gigabit switches in 1U

2×5 Gigabit Rack Switch

Two fully isolated 5-port networks — A and B — in a single rack unit. Lighting and data never meet.

2 × 5 ports
Isolated A/B
1U rack
PoE in/out

Two complete, electrically separate five-port gigabit switches on one 19-inch rack panel. Network A and Network B share nothing but the chassis — no internal link, no VLAN tricks to misconfigure — so you can run lighting on one side and audio, video or comms on the other with zero crosstalk. Each network has PoE in on port 1 and PoE out on port 5, and both run with Energy Efficient Ethernet disabled for clean sACN and Art-Net.

Request a quote Datasheet PDF

◆Features

Two fully isolated 5-port gigabit networks (A and B) — no internal connection

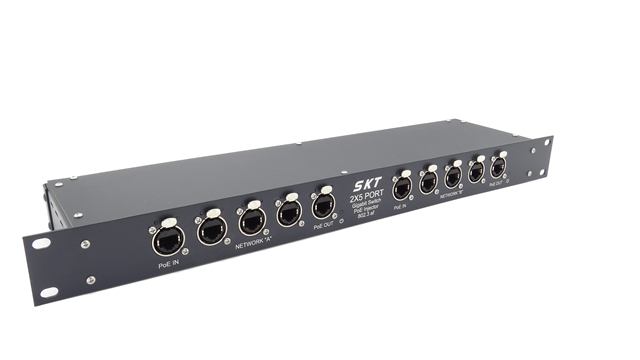

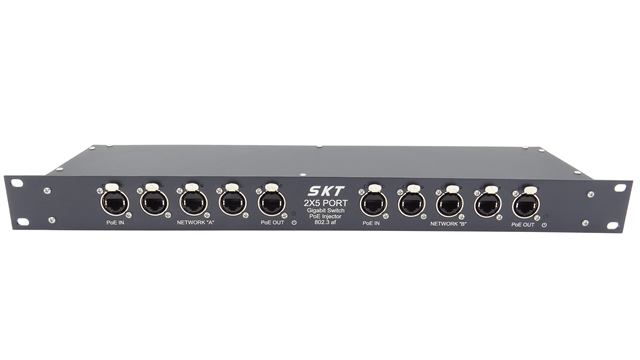

10 × locking etherCON-style connectors on a 19" 1U panel

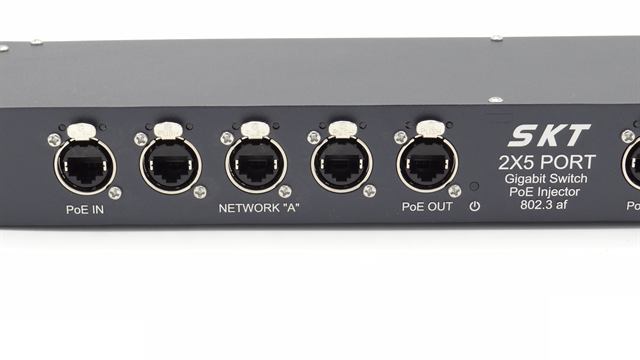

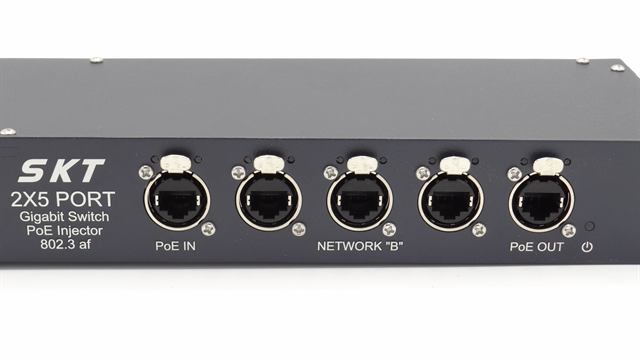

Per network: port 1 PoE IN, port 5 PoE OUT (IEEE 802.3af)
True unmanaged operation — no login, no menus, no firmware maintenance
Energy Efficient Ethernet (IEEE 802.3az) disabled by design — no Green Ethernet interference with sACN / Art-Net
Non-blocking switching fabric — wire-speed forwarding on all ports simultaneously
Jumbo frames up to 9,216 bytes forwarded at wire speed
IEEE 802.1w Rapid Spanning Tree and 802.1s Multiple Spanning Tree (up to 16 instances)
Hardware IGMP v1/v2/v3 and MLD v1/v2 snooping with Fast Leave
QoS with per-port input bandwidth control and traffic classification
IEEE 802.3x flow control (full duplex) with backpressure (half duplex)
Full duplex 10/100/1000M on every port (half duplex in 10/100M)

◆Specifications

Ports	2 × 5 × RJ45 (etherCON-style locking), 10/100/1000M
Isolation	Networks A and B fully independent — no internal link
Switching	Per network: non-blocking wire-speed fabric, 2K MAC table, 128 KB packet buffer
Energy Efficient Ethernet	Disabled by design (sACN / Art-Net compatibility)
PoE	Per network: port 1 in, port 5 out — IEEE 802.3af
Jumbo frames	9,216 bytes at wire speed

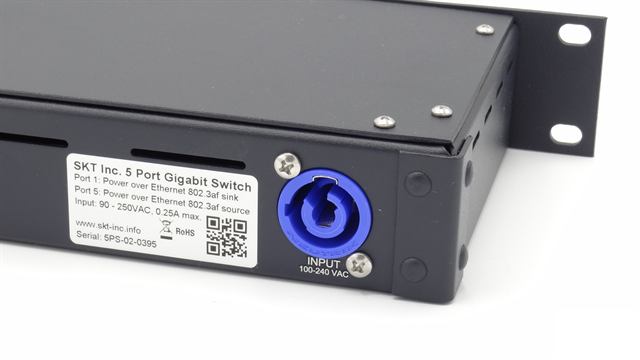

Power	90–240 V AC 50/60 Hz (Neutrik PowerCon) or PoE via port 1
Form factor	19" rack, 1U, 200 mm deep
