4-universe CRMX transmitter with sACN / Art-Net node

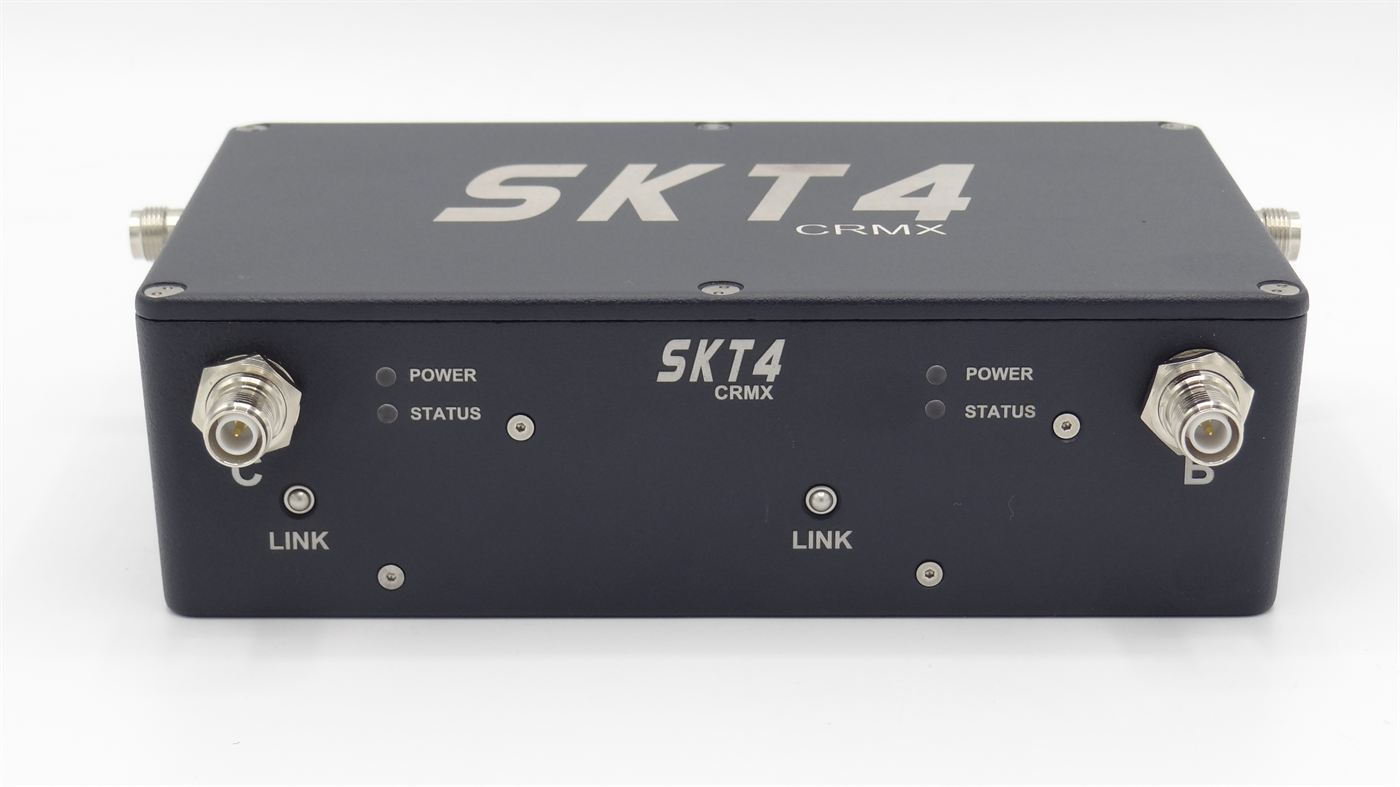

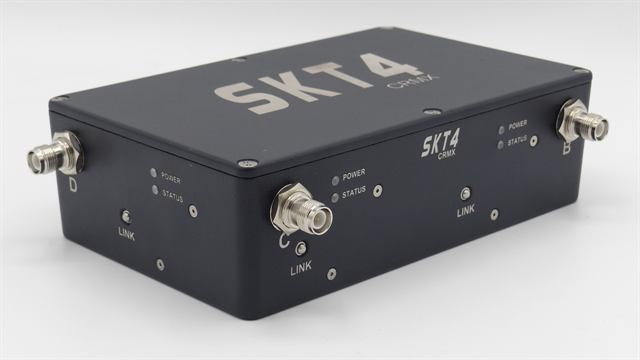

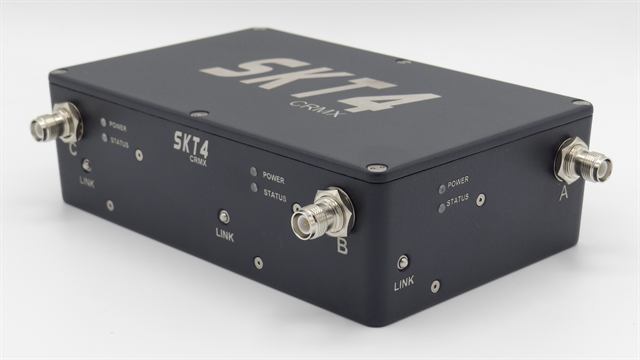

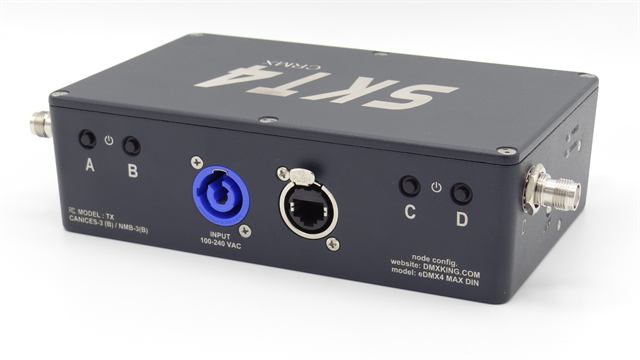

SKT4 Transmitter
Four independent CRMX universes plus a built-in network node — feed it sACN or Art-Net straight from the console.
- 4 universes
- sACN / Art-Net
- PoE 802.3af
- PowerCon
The SKT4 is four wireless transmitters and a network node in one box. Each of its four CRMX universes pairs independently to compatible receivers, and the built-in sACN/E1.31 and Art-Net node means the source can be a lighting network instead of four DMX lines — one RJ45 from the switch and you're on air. Configuration runs over the network using DMXKing software. Power comes in on Neutrik PowerCon or straight over PoE.
◆Features
- Four independent CRMX universes — 512 channels each
- Each universe pairs independently to any CRMX-compatible receiver
- Built-in sACN/E1.31 and Art-Net node on RJ45
- Network configuration via DMXKing software
- Powered by 90–240 V AC on Neutrik PowerCon or PoE (IEEE 802.3af)
- Four external antennas on RP-TNC
◆Specifications
| DMX capacity | 4 universes (512 channels each) |
|---|---|
| Radio | LumenRadio CRMX (TimoTwo) |
| Network protocols | sACN / E1.31, Art-Net |
| Configuration | RJ45, DMXKing software |
| Power | 90–240 V AC 50/60 Hz (Neutrik PowerCon) or PoE IEEE 802.3af |
| Dimensions | 190 × 120 × 55 mm (7.4 × 4.7 × 2.2 in) |
◆In the box
- SKT4 TX transmitter with integrated network node
- 4 × antennas
- PowerCon feeder cord
◆Downloads
Looking for something else? All documents are on the downloads page, or contact SKT.
+More Wireless DMX

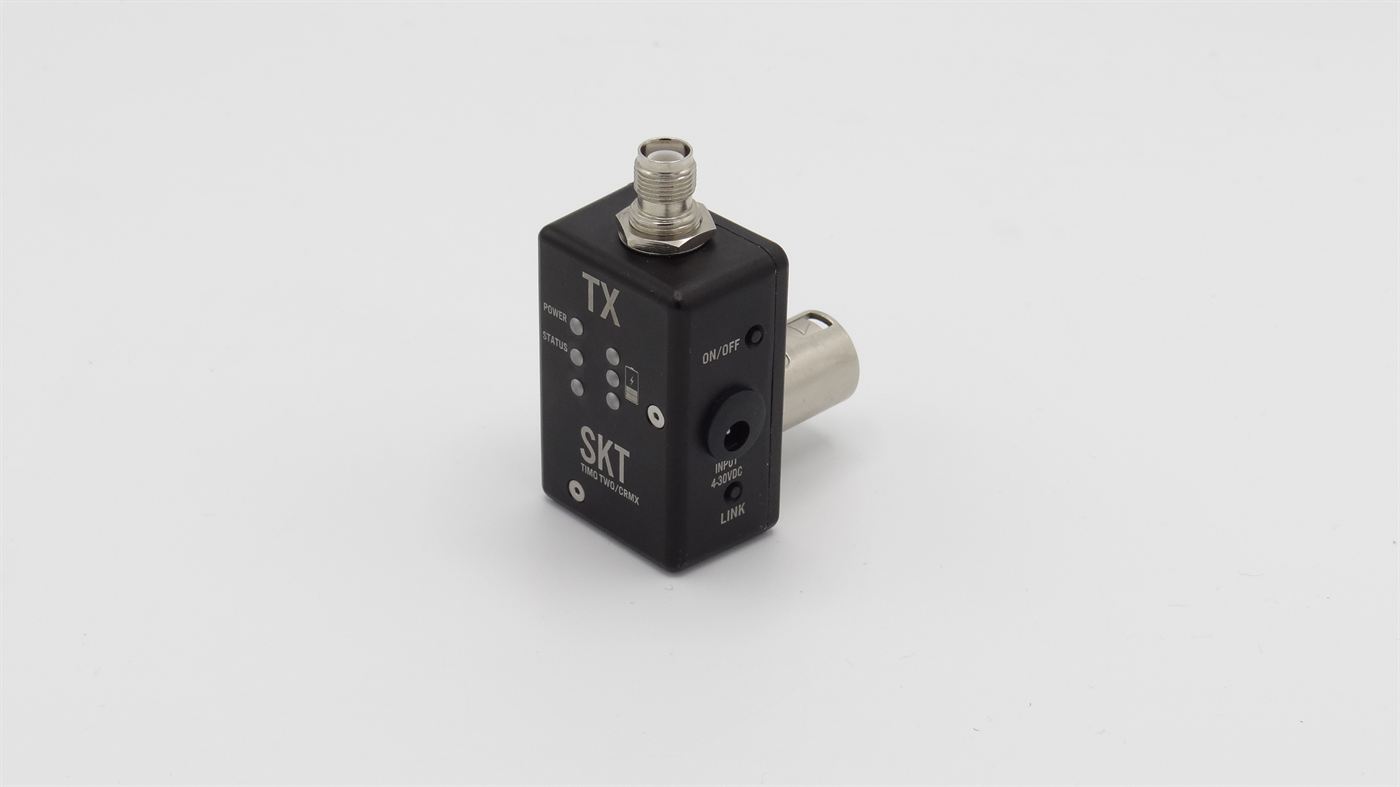

SKT TX
A pocket-size CRMX transmitter that turns any DMX source into a wireless universe.
- 512 ch
- TimoTwo
- BLE app config
- 5–30 V DC

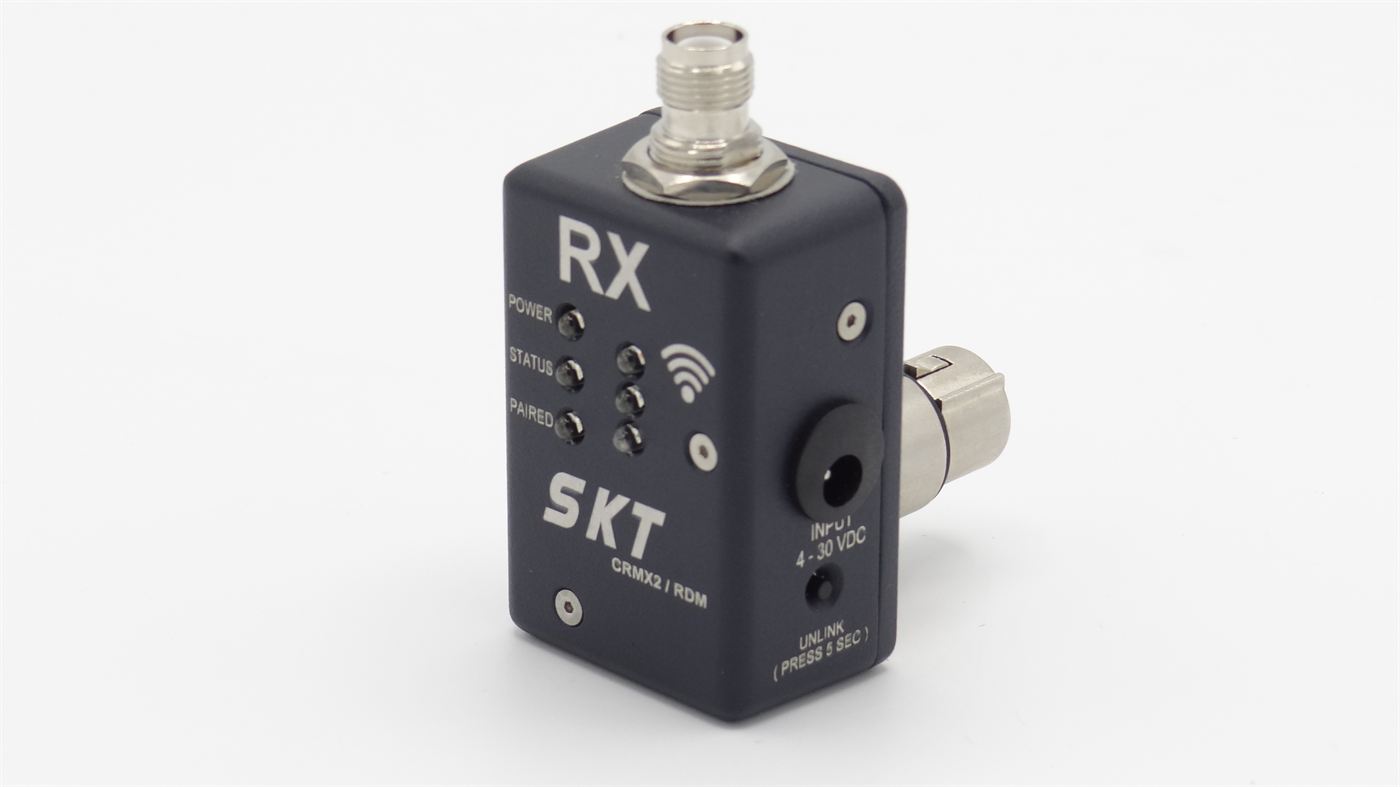

SKT RX
The proven receive-only unit, built on the original LumenRadio CRMX receiver chip.
- 512 ch
- CRMX chip
- RDM
- Receive-only

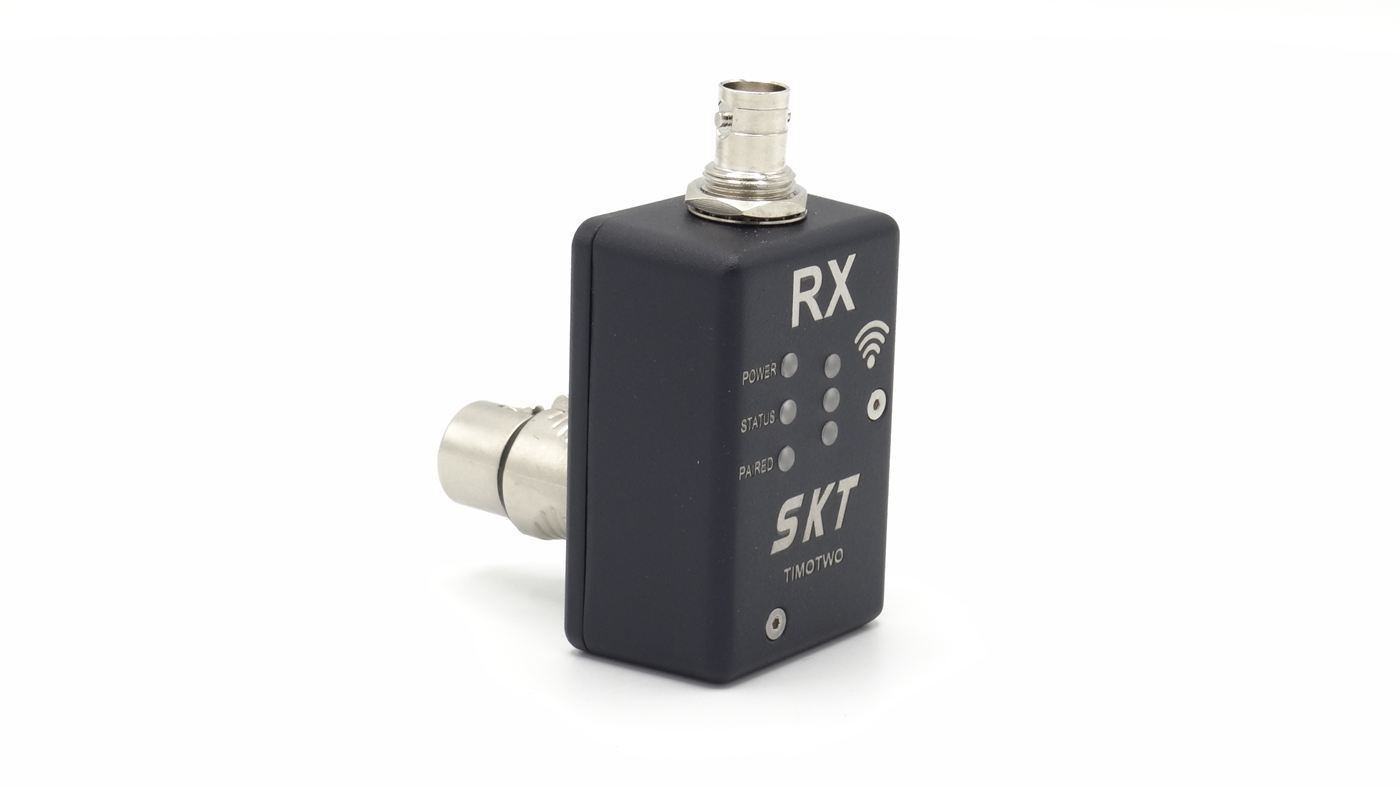

SKT RX TimoTwo
