5-port gigabit switch & PoE injector for show networks

5-Port Gigabit Switch

Five locking gigabit ports with PoE in and out — engineered for uninterrupted sACN and Art-Net.

5 × Gigabit
PoE in/out
EEE disabled
etherCON

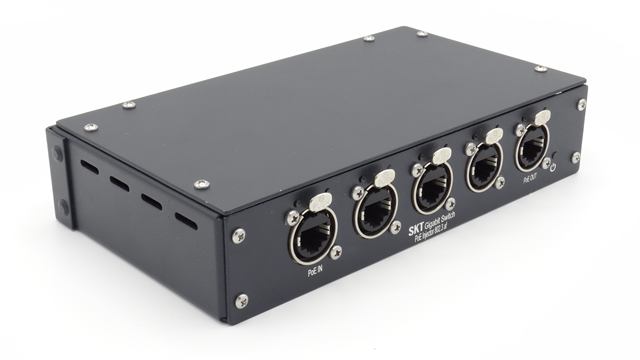

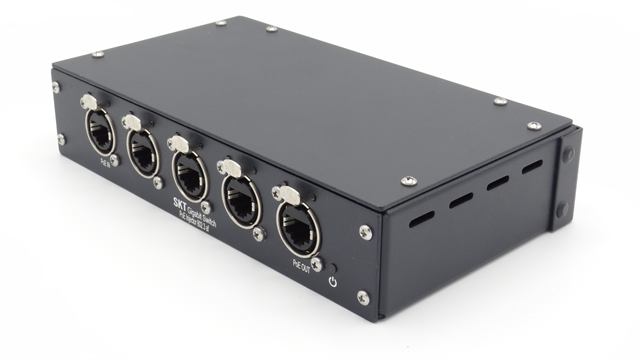

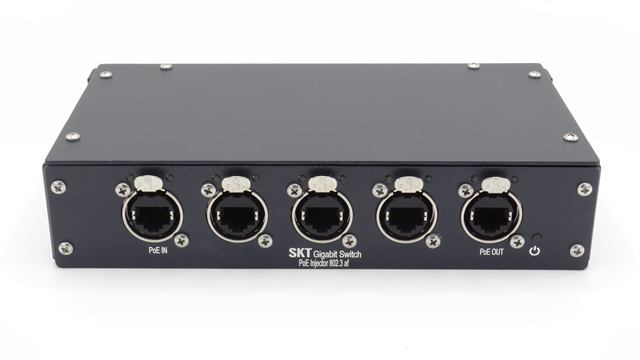

A smart unmanaged five-port gigabit switch built for the deck, not the desk. Locking etherCON-style connectors keep cables where you put them, port 1 accepts PoE so the switch itself can live at the end of a single line, and port 5 injects PoE back out to power a node or access point downstream when the switch is on mains. There is nothing to configure and nothing to misconfigure: the low-power switch core runs a non-blocking, wire-speed fabric with Energy Efficient Ethernet disabled — so streaming protocols like sACN and Art-Net flow without EEE-induced hiccups.

Request a quote Datasheet PDF

◆Features

5 × 10/100/1000M ports on locking etherCON-style connectors
Port 1: PoE IN (IEEE 802.3af) — power the switch over the line
Port 5: PoE OUT (IEEE 802.3af) when mains-powered
True unmanaged operation — no login, no menus, no firmware maintenance
Energy Efficient Ethernet (IEEE 802.3az) disabled by design — no Green Ethernet interference with sACN / Art-Net
Non-blocking switching fabric — wire-speed forwarding on all ports simultaneously
Jumbo frames up to 9,216 bytes forwarded at wire speed
IEEE 802.1w Rapid Spanning Tree and 802.1s Multiple Spanning Tree (up to 16 instances)
Hardware IGMP v1/v2/v3 and MLD v1/v2 snooping with Fast Leave
QoS with per-port input bandwidth control and traffic classification
IEEE 802.3x flow control (full duplex) with backpressure (half duplex)
Full duplex 10/100/1000M on every port (half duplex in 10/100M)

◆Specifications

Ports	5 × RJ45 (etherCON-style locking), 10/100/1000M
Switching	Non-blocking wire-speed fabric, 2K MAC table, 128 KB packet buffer
Energy Efficient Ethernet	Disabled by design (sACN / Art-Net compatibility)
PoE	Port 1 in, port 5 out — IEEE 802.3af
Jumbo frames	9,216 bytes at wire speed

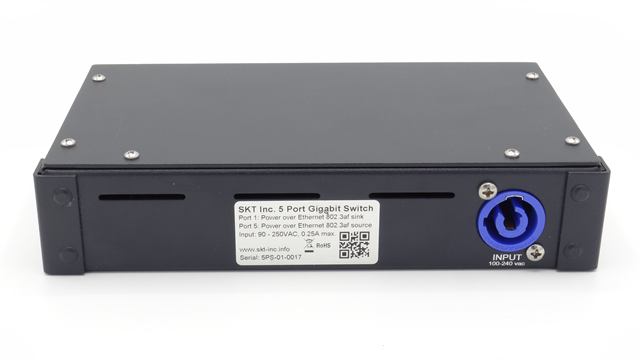

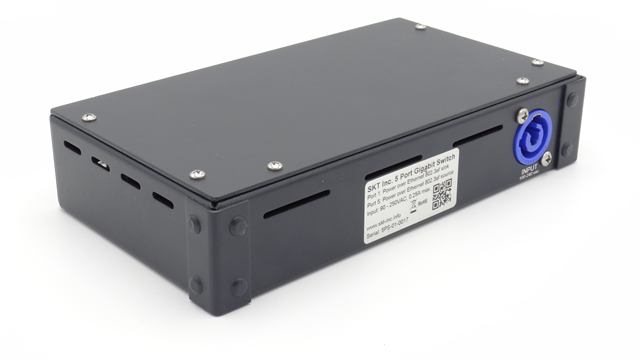

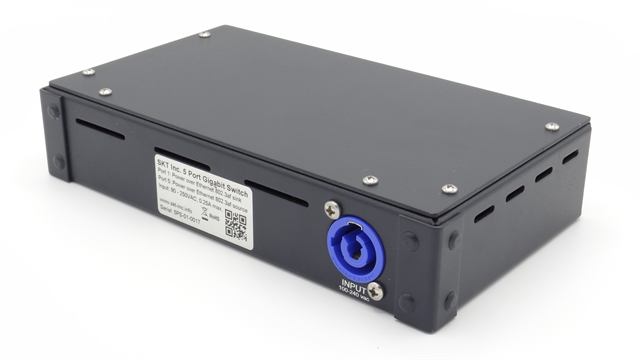

Power	90–240 V AC 50/60 Hz (Neutrik PowerCon) or PoE via port 1
Dimensions	195 × 110 × 42 mm (7.7 × 4.3 × 1.6 in)
