Dual-radio wireless DMX receiver & merger
Dual RX
Two independent TimoTwo receivers, one DMX output, automatic best-signal merge — with 24+ hours of battery.
- 2× TimoTwo
- Auto merge
- 24+ h battery
- 1 DMX out
The Dual RX puts two complete LumenRadio TimoTwo receivers in one box, feeding a single DMX output. Link each radio to a different transmitter and the merge function selects the active source automatically — based on wireless connectivity, signal strength and a valid DMX stream — so a failing link never interrupts the output. For manual control, a slide switch hard-selects RX A or RX B. The built-in rechargeable battery runs for over 24 hours, making it ideal for set-mounted and remote positions.
◆Features
- Two independent LumenRadio TimoTwo receivers in one enclosure
- Each radio links to its own transmitter — true dual-link redundancy
- Automatic merge picks the receiver with the best link and a valid DMX stream

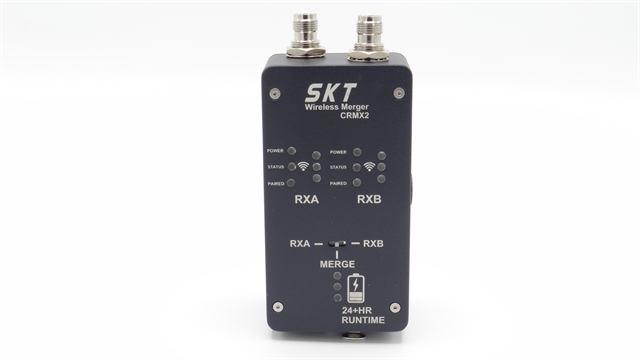

- Manual override via front-panel slide switch (RX A / RX B)
- Built-in rechargeable battery — 24+ hours of runtime

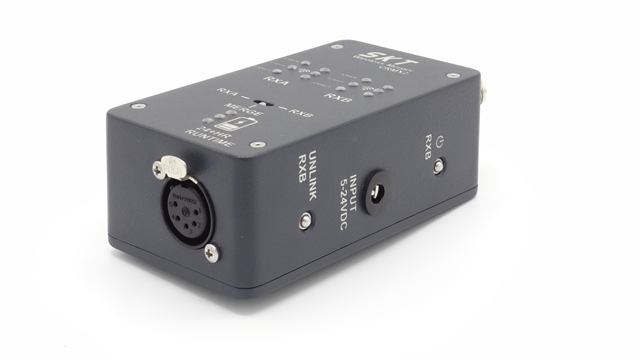

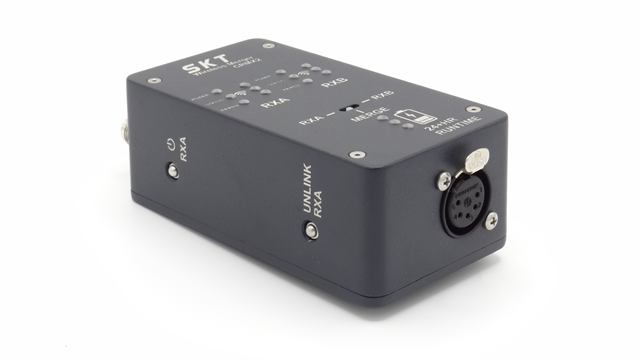

- Single DMX output on 5-pin XLR
◆Specifications
| DMX capacity | 1 universe out (512 channels) |
|---|---|
| Radios | 2 × LumenRadio TimoTwo (independent links) |
| Merge | Automatic (link quality + valid DMX) or manual slide switch |
| Battery | Built-in rechargeable, 24+ h runtime |
| Input voltage | 5–24 V DC via barrel connector |

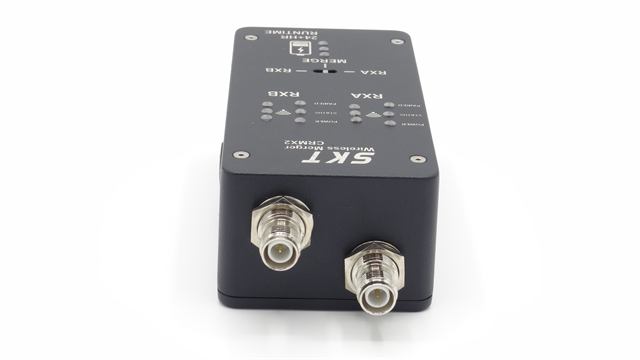

| Antenna connectors | 2 × RP-TNC |
| Dimensions | 59 × 42 × 130 mm (2.3 × 1.7 × 5.1 in) excl. antennas |
◆In the box
- SKT Dual RX wireless DMX receiver
- 2 × RP-TNC antennas
- USB-to-barrel pigtail
◆Downloads
Looking for something else? All documents are on the downloads page, or contact SKT.
