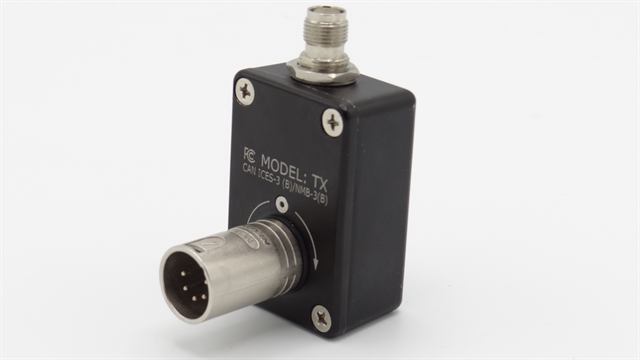

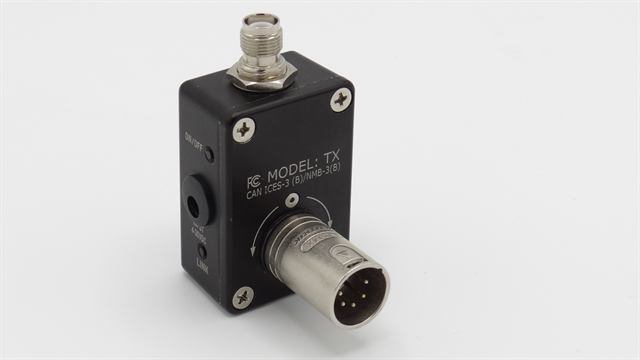

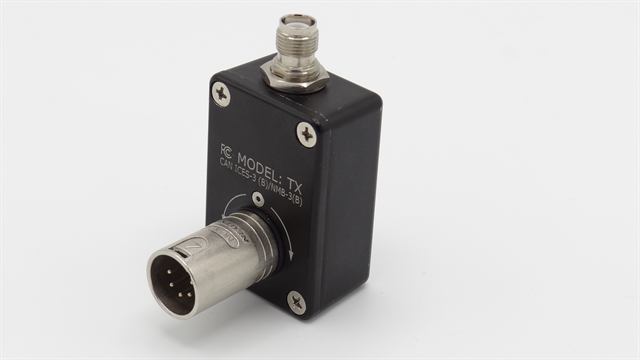

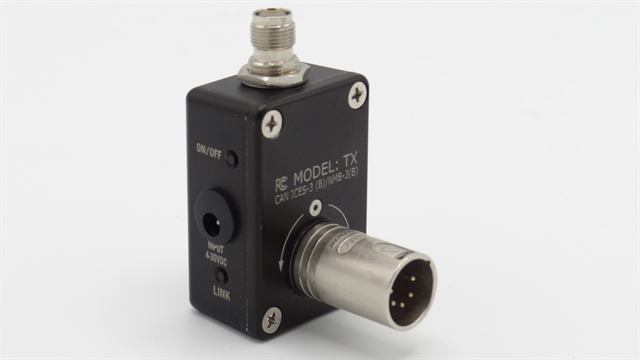

Single-universe wireless DMX transmitter
SKT TX
A pocket-size CRMX transmitter that turns any DMX source into a wireless universe.
- 512 ch
- TimoTwo
- BLE app config
- 5–30 V DC
The SKT TX takes one universe of DMX in on its 5-pin XLR and puts it on air with LumenRadio's CRMX protocol. Built on the TimoTwo module, it runs dual-band 2.4 GHz with Bluetooth Low Energy on board, so you can configure it from your phone with LumenRadio's free CRMX Toolbox app — linking keys, universe colors and output behavior. Power it from anything between 5 and 30 volts: a USB pack through the included pigtail, a spare battery, or the rig itself.
◆Features
- Transmits a full 512-channel DMX universe over LumenRadio CRMX
- LumenRadio TimoTwo radio — 2.4 GHz with Bluetooth Low Energy
- Configure over BLE with LumenRadio's CRMX Toolbox app (Linking Key, Universe Color)
- Ultra-low latency, interference-resistant frequency-hopping RF
- Runs from 5–30 V DC — USB power bank, battery, or rig power

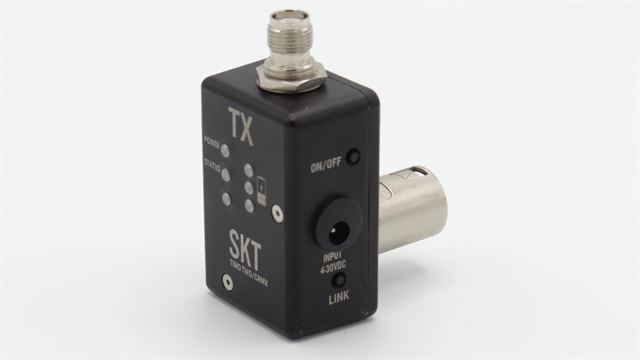

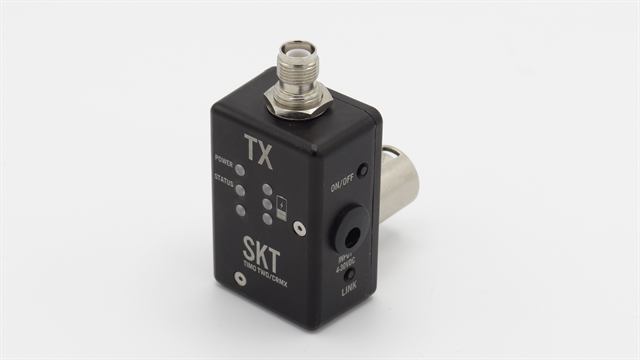

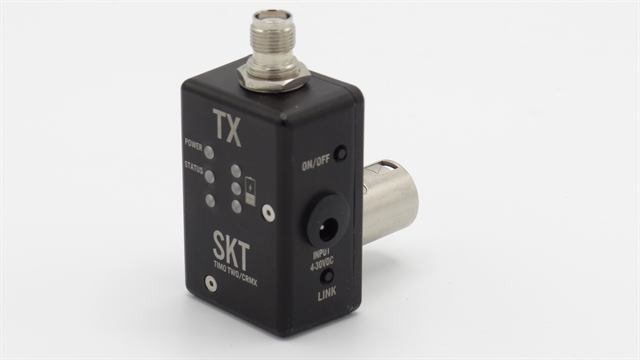

- Compact machined enclosure with status and link LEDs
◆Specifications
| DMX capacity | 1 universe (512 channels) |
|---|---|
| Radio | LumenRadio TimoTwo — CRMX, 2.4 GHz + Bluetooth LE |
| Configuration | CRMX Toolbox app over Bluetooth LE |
| Input voltage | 5–30 V DC via barrel connector |
| Antenna connector | RP-TNC |
| Dimensions | 40 × 27 × 77 mm (1.6 × 1.0 × 3.0 in) excl. DMX connector |
| Certifications | FCC, CE, Industry Canada |
◆In the box
- SKT TX wireless DMX transmitter
- RP-TNC antenna
- USB-to-barrel pigtail
◆Downloads
Looking for something else? All documents are on the downloads page, or contact SKT.
