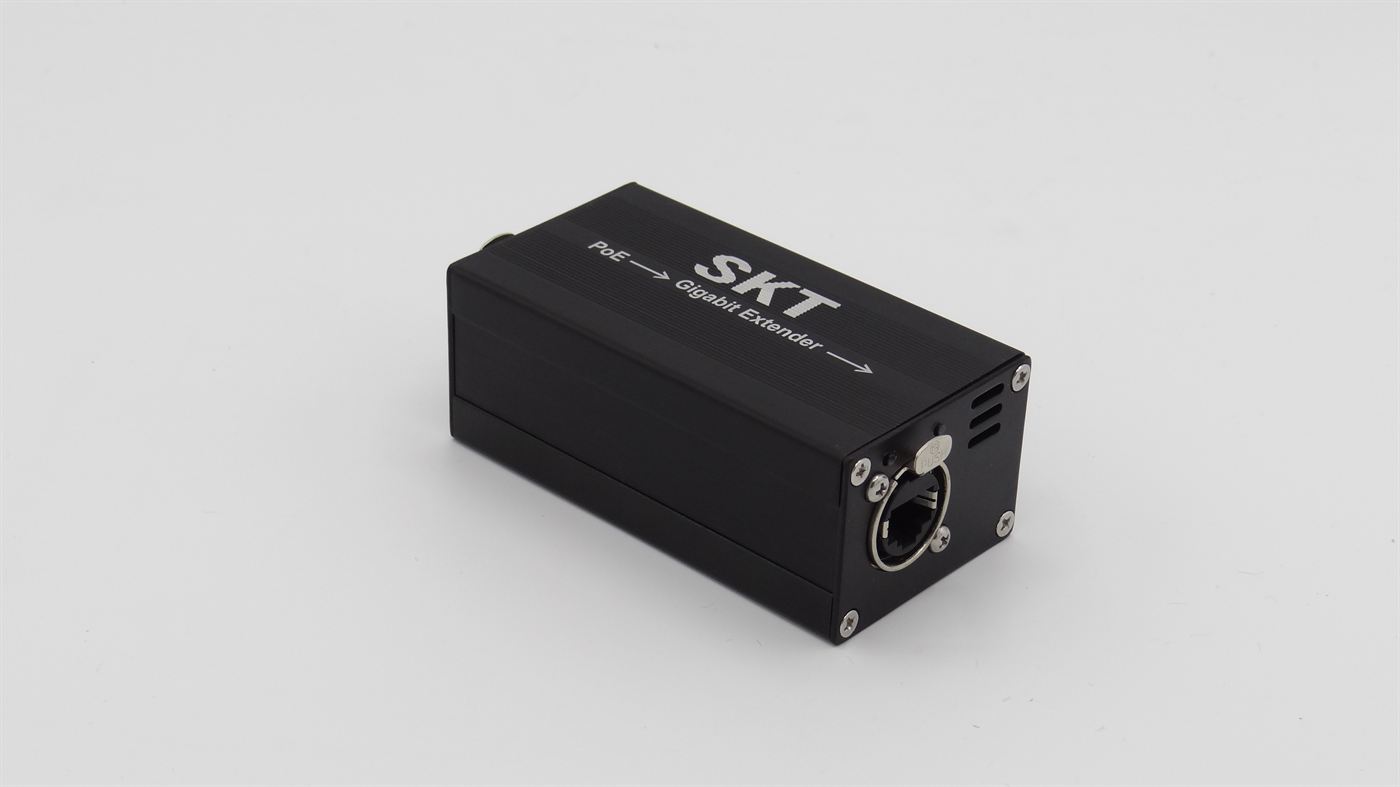

2-port gigabit repeater — buy back 100 meters

Gigabit Network Extender

An inline repeater that adds another 100 m (330 ft) to any gigabit run, powered by the line itself.

+100 m reach
PoE powered
EEE disabled
Pocket-size

Ethernet stops at 100 meters; shows don't. Drop the Gigabit Network Extender inline and buy back another full 100 m (330 ft) of gigabit reach. It runs off PoE from the line itself — no local power needed — or from a 12 V barrel supply. Same engineering as the switches: wire-speed fabric, jumbo frame support, and Energy Efficient Ethernet disabled so long runs stay just as glitch-free as short ones.

Request a quote Datasheet PDF

◆Features

Extends any gigabit run by up to 100 m (330 ft)
2 × 10/100/1000M ports on locking etherCON-style connectors
Powered by PoE (IEEE 802.3af) on port 1 — no local power required
True unmanaged operation — no login, no menus, no firmware maintenance
Energy Efficient Ethernet (IEEE 802.3az) disabled by design — no Green Ethernet interference with sACN / Art-Net
Non-blocking switching fabric — wire-speed forwarding on all ports simultaneously
Jumbo frames up to 9,216 bytes forwarded at wire speed
IEEE 802.1w Rapid Spanning Tree and 802.1s Multiple Spanning Tree (up to 16 instances)
Hardware IGMP v1/v2/v3 and MLD v1/v2 snooping with Fast Leave
QoS with per-port input bandwidth control and traffic classification
IEEE 802.3x flow control (full duplex) with backpressure (half duplex)
Full duplex 10/100/1000M on every port (half duplex in 10/100M)

◆Specifications

Ports	2 × RJ45 (etherCON-style locking), 10/100/1000M
Reach	+100 m (330 ft) per extender
Switching	Non-blocking wire-speed fabric, 2K MAC table, 128 KB packet buffer
Energy Efficient Ethernet	Disabled by design (sACN / Art-Net compatibility)
Jumbo frames	9,216 bytes at wire speed
Power	PoE IEEE 802.3af via port 1, or 12 V DC barrel connector
Dimensions	100 × 52 × 39 mm (3.9 × 2.0 × 1.5 in)
