8-universe CRMX transmitter with sACN / Art-Net node

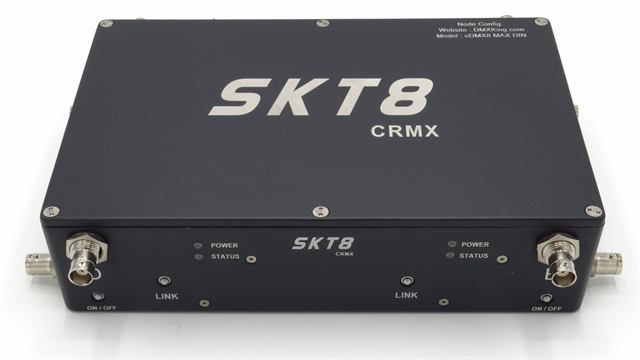

SKT8 Transmitter
Eight independent CRMX universes from one box — the whole rig goes wireless off a single network line.
- 8 universes
- sACN / Art-Net
- PoE 802.3af
- 10–28 V DC
The SKT8 is the flagship transmitter: eight independent CRMX universes with a built-in sACN/E1.31 and Art-Net node. Patch eight universes from the console over one RJ45, or feed it DMX — either way, each universe pairs to its own set of receivers. Configuration runs over the network with DMXKing software. It takes power three ways: Neutrik PowerCon mains, PoE, or 10–28 V DC for battery and truck-rack duty.
◆Features
- Eight independent CRMX universes — 512 channels each
- Each universe pairs independently to any CRMX-compatible receiver
- Built-in sACN/E1.31 and Art-Net node on RJ45
- Network configuration via DMXKing software

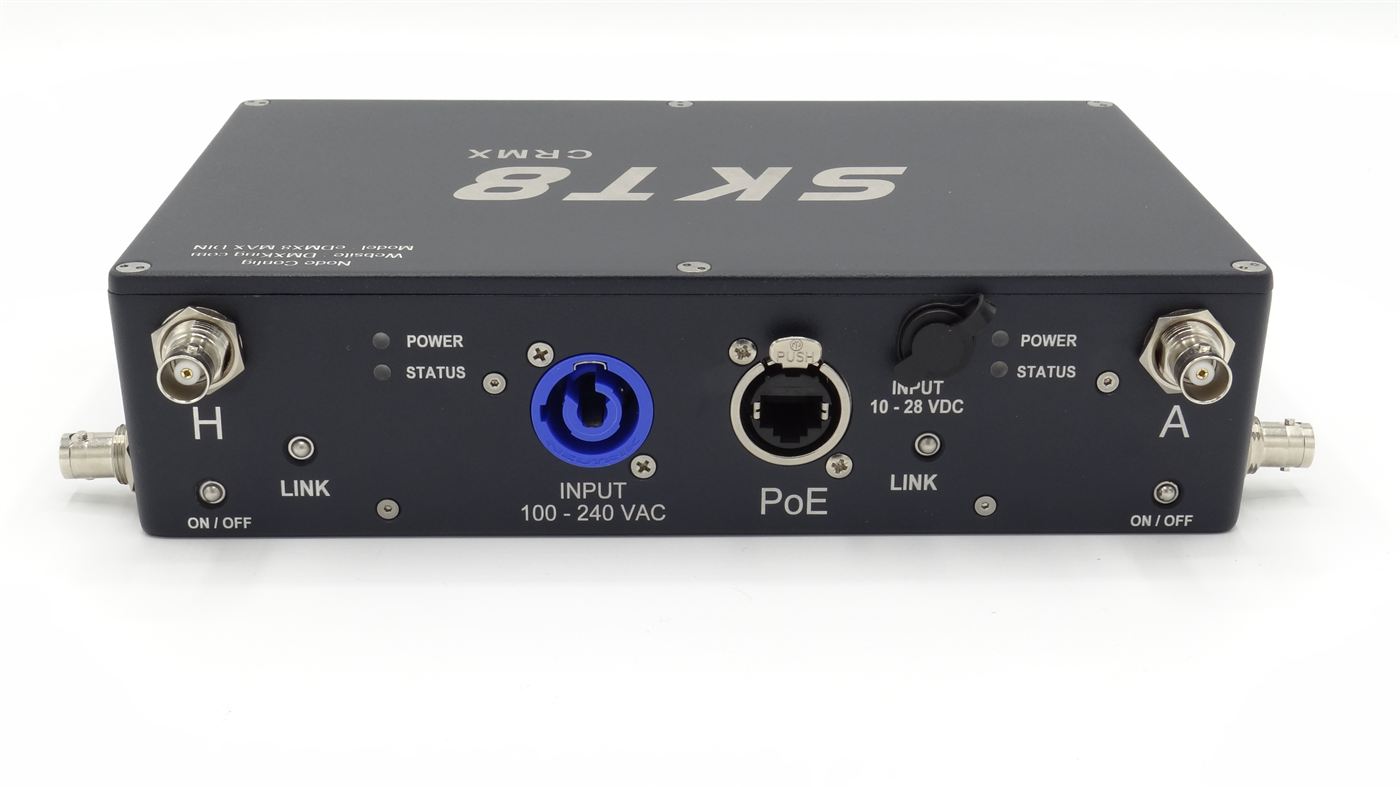

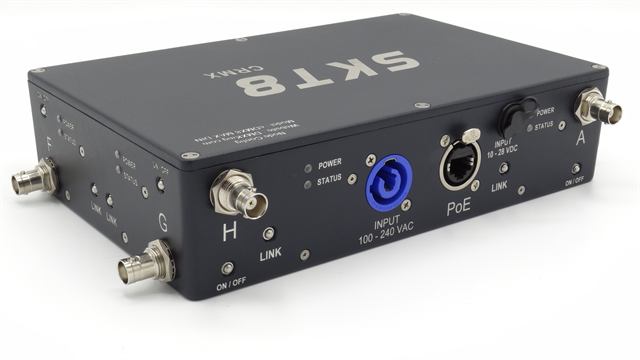

- Three power inputs: 90–240 V AC PowerCon, PoE 802.3af, or 10–28 V DC
- Eight external antennas on RP-TNC
◆Specifications
| DMX capacity | 8 universes (512 channels each) |
|---|---|
| Radio | LumenRadio CRMX (TimoTwo) |
| Network protocols | sACN / E1.31, Art-Net |
| Configuration | RJ45, DMXKing software |
| Power | 90–240 V AC (PowerCon), PoE IEEE 802.3af, or 10–28 V DC |
◆In the box
- SKT8 TX transmitter with integrated network node
- 8 × antennas
- PowerCon feeder cord
◆Downloads
Looking for something else? All documents are on the downloads page, or contact SKT.
